FLUKE Flex AC Current Clamp
#Grup produk P106956869
Spesifikasi
| Current Range (A) | 30-3000 |
|---|---|
| Output Sensitivity (mV) | 100-1 |
| Load Impedance (kΩ) | Min. 100 |
| Accuracy (%) | at +25°C: ±1 of range (45Hz to 65Hz) |
| Linearity (%) | 10 to 100 of range: ±0.2 of reading |
| Frequency Range (Hz) | 10 to 50000 (at -3dB) |
| Battery Life (hour) | 400 |
| Cable Length (m) | 2 |
| Head Bend Radius (mm) | 38.1 |
| Head Cable Diameter (mm) | 14.3 |
| Head Cable Length (mm) | 610 or 914, depending on model |
| Head Circumference Size (mm) | 610 |
| Operating Humidity (%) | 15 to 85 (non-condensing) |
| Operating Temperature Range (°C) | -20 to +90 (-4°F to 190°F) (head); -20 to +85 (-4°F to 185°F) (electronics) |
| Power Supply | 2 x AA/MN 1500/LR6 Alkaline, low battery indicator |
| Safety Rated | BS EN 61010-1: 2001, BS EN 61010-2-032: 2002, BS EN 61010-031: 2002, 600 Vrms, Category III, Pollution Degree 2 |
| Storage Temperature Range (°C) | -40 to +105 (-40°F to 221°F) (head); -20 to +85 (-4°F to 185°F) (electronics) |
| Working Voltage (V) | 600 AC rms or DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

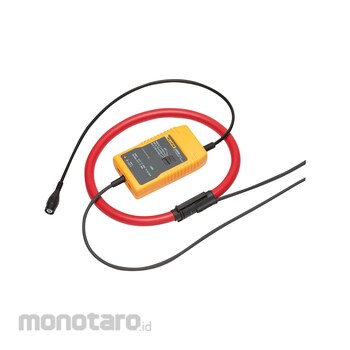

The i3000s Flex is an AC current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.
Feature
- Three ranges30 A300 A3000 A, 1, 10 or 100 mV/A output- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm (7 in)
- CAT III 600 V safety rating
