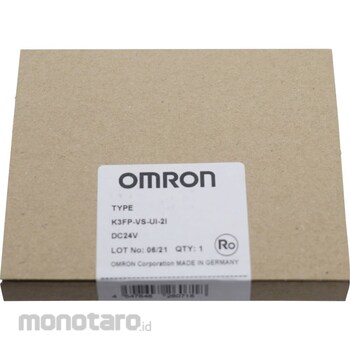

OMRON Ultra Thin Signal Converter K3FP Series
#Grup produk P106933859
Sebelum PPN:
Rp6.299.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Protection Class | IP20 |
|---|---|
| Frequency (Hz) | (Cutoff) 100 |
| Type of Connection | Screw connection (M3) |
| Connection cable | Single wire: 0.14 to 2.5mm2 Double strand wire: 0.2 to 2.5mm2 AWG: 24-12 Wire stripping length: 12mm |
| Insulation Resistance (MΩ) | Between input-output-power supply 10 or more (at DC500V megger) |
| Material (Housing) | PBT |
| Operating Ambient Temperature (°C) | -20 to +65 |
| Power Supply Voltage (V) | DC24 |
| Response Time | (10 → 90%) 3.5ms or less |
| Storage Temperature Range (°C) | -40 to +85 |
| Temperature Coefficient (%/°C) | 0.01 max., 0.002 max. (Based on 23 °C) |
| Tightening Torque (N m) | 0.5 |
| Withstand Voltage | 1,500 VAC, 50 Hz, 1 min (between input-output-power supply) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
