OMRON SYSMAC CJ Series Ethercat Compatible Position Control Unit
#Grup produk P106931930
Sebelum PPN:
Rp25.999.900 - Rp56.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | RJ45 connector x 1 (shielded) |
|---|---|
| Control Unit | Pulse, mm, inch, degree (command unit can be set for each axis by electronic gear ratio and unit magnification) |
| In / Out signal | (For driver I/F) No external input/output (external I/F signal: 6 points (external origin signal, origin proximity signal, positive direction limit, negative direction limit, immediate stop, interrupt input)/axis) |
| Communication Standard | IEC 61158 Type12 |
| Applicable Standard | cULus (Class II Div2 hazardous area certified product), EC Directive |
| Current Consumption (mA) | (Internal) DC5V 460mA or less |
| Data Type | Use fixed PDO mapping (Fixed PDO mapping) defined by process data / slave (set by support software) |
| Display LED | ECAT RUNx1, ECAT ERRx1, L/A(Link/Activity)x1 |
| Operating Ambient Temperature (°C) | 0 to 55 |

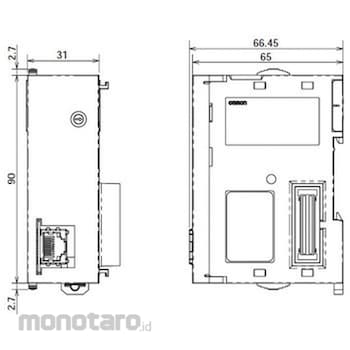

| Outer Dimensions (WxDxH) (mm) | 31x65x90 |
| Speed Command | Data: (position control) 1 to 2,147,483,647 command units/s, (speed control) -2,147,483,648 to 2,147,483,647 command units/s Number of data: 500/task |
| Suitable For | (PLC) CJ series |
| Type of control | Issuing control commands via EtherCAT communication |
