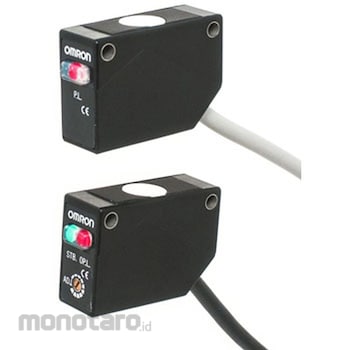

OMRON Small Ultrasonic Sensor E4E2
#Grup produk P106928972
Spesifikasi
| Protection Class | IEC standard IP64 |
|---|---|
| Detection Distance (mm) | 500 |
| Type | Ultrasonic sensor |
| Ambient Humidity (% RH) | Operating and storage: 35 to 85 (no condensation) |
| Cable Length (m) | 2 |
| Case Material | ABS resin |
| Control Output | NPN open collector, load power supply voltage DC26.4V or less, load current 100mA or less (residual voltage 1V or less) |
| Current Consumption (mA) | <Transmitter> E4E2-TS50TC1: 25 or less (at 24 VDC), <Receiver> E4E2-TS50RC1: 15 or less (at 24 VDC) |
| Included Accessories | Mounting bracket (with screws), adjustment screwdriver |
| Indicator Lamp | <Transmitter> Power indicator (red), <Receiver> operation indicator (red), Sound margin display (green) |
| Insulation Resistance (MΩ) | Between live parts and case: 100 or more (at 500 VDC) |
| Operating Voltage Range (V) | 21.6 to 26.4 |
| Output | NPN open collector / NO |
| Power Supply Voltage (V) | DC24 ripple (pp) 10% or less |
| Protection circuit | Output short circuit protection |
| Response Frequency (Hz) | 20 or less |
| Standard Sensing Object (mm) | SPCC board 40 x 40 x 2 |
| Type of Connection | Pre-wired model |
| Vibration Resistance (Durability) | 10 to 55 Hz, 1.5 mm double amplitude, 3 h each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small amplifier built-in type that can detect transparent films, transparent bottles, PET bottles, etc.
