The conventional product (A6S) has been renewed, and the surface mount terminal type with improved solder heat resistance can be mounted and compatible with the conventional product (A6S). The same shape improves solder heat resistance.
(Soldering peak temperature: 260°C)
The contact part is gold-plated, twin contacts and a self-cleaning mechanism with sliding ensures high reliability.
A lineup of types with washable sealing tape.

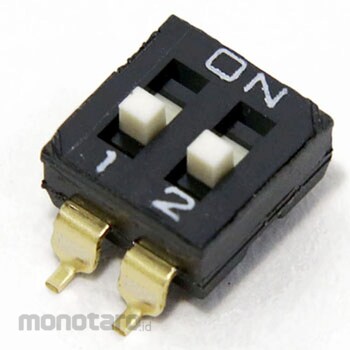

OMRON Slide DIP Switch A6S-H
#Grup produk P106928158
Spesifikasi
| Color | (Strike) White |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Operating Humidity Range (%RH) | 35 to 95 (at +5 to + 35 ° C) |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Contact Configuration | 1a (normally open contact) |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Durability | 1000 times or more |
| Electrical Rating | 24 mA 25 mA, 3.5 V DC 10 μA (minimum current) |
| Operating Force (N) | 0.29 to 9.8 |
| Operating Temperature Range (°C) | -20 to +70 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Withstand Voltage | Between terminals: AC500V 1min |
