Achieves a low profile of 5.8mm on the low-profile, economy-type circuit switching connector board.
It can be used in both vertical and horizontal directions with a 2.54mm grid high-density mounting type.
Supports through-hole diameter of ɸ0.8.
Easy to insert and difficult to remove.
2-point contact structure with high contact reliability.
The thin plug housing uses PPS resin with excellent heat resistance.
UL standard certified products are standard products.

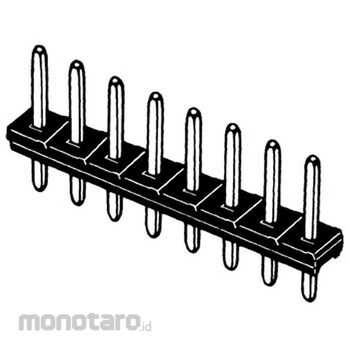

OMRON Short-Circuit Plug Single Row Type (Low Profile) XJ8B
#Grup produk P106927733
Spesifikasi
| Total Insertion Force (N) | 1.96 or less (with short-circuit dedicated plug) |
|---|---|
| Rated Voltage (V) | AC300 |
| Standard | RoHS directive, UL standard (File No.E103202) |
| Withstand Voltage | 700 VAC, 1 min (leakage current 1 mA or less) |
| Contact Material | Brass |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insertion / Removal Durability (Times) | 50 |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (Housing) | PPS resin with glass (UL94V-0) / Black |
| Operating Ambient Temperature (°C) | -55 to +105 (no freezing at low temperatures) |
| Rated Current (A) | 2 |
| Shape | Single row plug type for short circuit (low profile) |
| Surface Treatment (Contact) | Nickel base gold plating (0.15 μm) |
| Total Removal Force (N) | 0.39 or more (with short-circuit plug) |
