The rotary type that can be selected according to the operation method with a seal type. Two types of cone type, upper and side operation, shaft type that can be operated from the panel surface with a long shaft, and flat type are available.
Stable contact reliability is realized by the fixed slider and printed circuit board rotation method.
Seal structure IP64 (IEC-60529) equivalent prevents flux from entering, and ensures high contact reliability even in dusty places and around water.
For microcomputer mode setting, communication board (modem), servo controller, coin changer, PLC

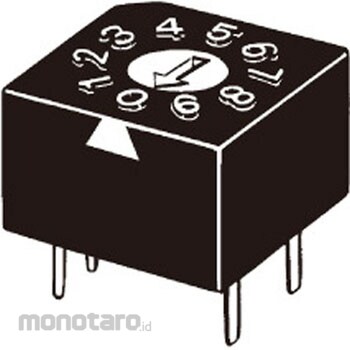

OMRON Sealed Rotary DIP Switch A6A
#Grup produk P106924967
Spesifikasi
| Operating Temperature Range (°C) | -10 to 70 60% RH or less (with no icing or condensation) |
|---|---|
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Durability (steps) | More than 2000 |
| Electrical Rating (V-A) | DC 28-0.1, DC 5-1mA (minimum current) |
| Insulation Resistance (MΩ) | 10 or more (at 250 VDC) |
| Operating Humidity Range (%RH) | 45 to 85 or less (at 5 to 35°C) |
| Operating Torque (N m) | 1.18-2.45x10² |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
