DIL-IC shape with a seal structure realizes miniaturization Realization of miniaturization by precision mechanical design of rotating cam and contact piece drive system, enabling high-density mounting.
Series of top and side operation types.
The base part is insert-molded, and the rotor part has an O-ring seal structure equivalent to IP64 (IEC-60529) to prevent flux from entering. In addition, high contact reliability is ensured even in places with a lot of dust and around water.
The terminal part protrudes from the side of the case for easy circuit check.

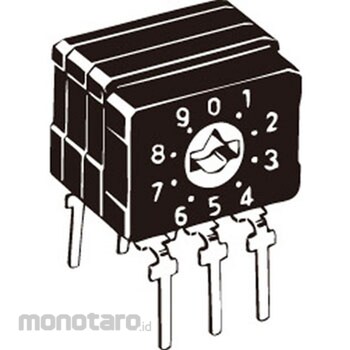

OMRON Sealed Rotary DIP Switch (Side Operation Type) A6CV
#Grup produk P106924921
Spesifikasi
| Operating Temperature Range (°C) | -20 to 70 60% RH or less (with no icing or condensation) |
|---|---|
| Type | Side operation type |
| Color | (Rotor) Orange |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Durability (steps) | More than 2000 |
| Electrical Rating (V/A) | 30 DC/0.1, 3.5 DC/10 μA(minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Operating Humidity Range (%RH) | 35 to 95 (at 5 to 35°C) |
| Operating Torque (N m) | 0.98x10² or less |
| Position | 16 |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type of Output Code | Real code |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
