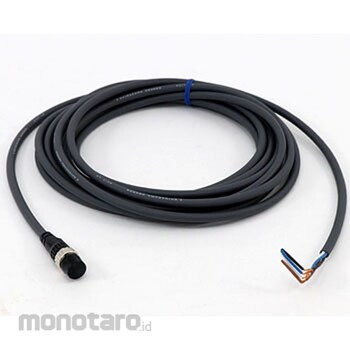

OMRON Round Waterproof Connector Connector With Cable Plug One Side Connector XS5H
#Grup produk P106923162
Spesifikasi
| Cable Holding Strength (N/15s) | 100 (Cable diameter Φ6mm) |
|---|---|
| Lock Operation Force (Nm) | 0.1-0.25 |
| Lock Strength | Tensile: 100N/15s, rotation: 1Nm/15s |
| Connector | One side connector |
| Contact Resistance (miliΩ) | (Connector part) 40 or less (20mV or less, 100mA or less) |
| Cover Material | Polyester elastomer |
| Gold Plated (mm) | 0.4 |
| Insertion/Removal Durability (times) | over 50 |
| Insulation Resistance (MΩ) | 1000 or more (at 500 VDC) |
| Material (Contact Block) | PBT resin (UL94V-0) |
| Material (Fixing Bracket) | Zinc alloy/Ni plating |
| Material (Mounting Bracket) | (Nail) SUS |
| Material (O-ring) | Rubber |
| Operating Temperature Range (°C) | -25 to 70 |
| Shape | Mating part: For DC |
