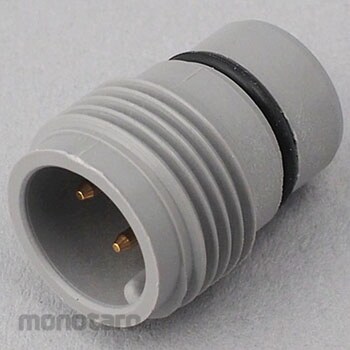

OMRON Round Waterproof Connector (M12) Sensor Plug Connector XS2
#Grup produk P106922969
Spesifikasi
| Protection Class | IP67 (IEC60529) |
|---|---|
| Suitable Wire Diameter | AWG22-28 |
| Surface Treatment (Fixing Tool) | Copper alloy |
| Operating Temperature Range (°C) | -25 to 70 |
| Contact Material | Brass |
| Contact Resistance (miliΩ) | 40 or less (Connector part: 20mV or less, 100mA or less) |
| Insertion/Removal Durability (times) | 200 |
| Insulation Resistance (MΩ) | 10³ or more (at 500 VDC) |
| Material (Contact Block) | PA resin |
| Material (Fixing Bracket) | Brass |
| Material (O-ring) | Rubber |
| Operating Humidity Range (%RH) | 20-85 |
| Rated Current (A) | 4 |
| Surface Treatment (Contact) | Gold plating |
| Terminal Shape | Solder cup terminal |
| Withstand Voltage (V/minute) | (Connector part) AC 1500 (leakage current 1mA or less) |
