Waterproof connector for FA pursuing reduced man-hours, maintenance and environmental resistance.
Compliant with IP67. Compact connector for FA that achieves 94V-0 flame resistance.
Wiring system connector makes facility maintenance easier and reduces facility downtime.

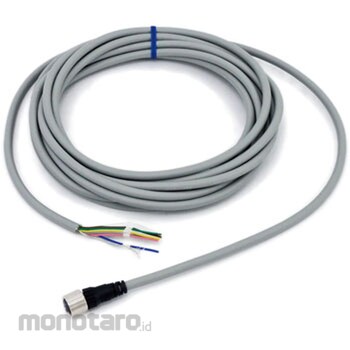

OMRON Round Waterproof Connector (M12) Connector With Cable Socket Socket One Side Connector XS2
#Grup produk P106922862
Spesifikasi
| Protection Class | IP67(IEC529) |
|---|---|
| Cable Holding Strength (N/15s) | Outer diameter Φ6: 98, Outer diameter Φ4~Φ5: 49, Outer diameter: Φ3: 29 |
| Color | Contact block: light gray |
| Rated Voltage (V) | DC250 |
| Operating Humidity Range | 20 to 85%RH |
| Material (O-ring) | Rubber |
| Tensile Strength (N/s) | Assembly part fixed: 98/15 |
| Connector | One side connector |
| Contact Material | Phosphor bronze |
| Contact Resistance (miliΩ) | Connector: 40 or less (20mV or less, 100mA or less) |
| Cover Material | Soft PBT (UL94V-0) |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Operating Temperature Range (°C) | -25 to +70 |
| Rated Current (A) | 1.5 |
| Type | Connector with cable, socket one side connector |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Crimp type socket contacts are sold separately.Ulasan Produk
