The low-cost rotary dip switch rotor part is sealed with an O-ring to prevent dust from entering.
Easy circuit design.

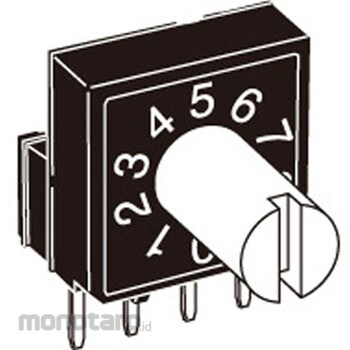

OMRON Rotary DIP Switch (Side Operation) A6RV
#Grup produk P106922622
Spesifikasi
| Operating Temperature Range (°C) | -25 to 80 60% RH or less (with no icing or condensation) |
|---|---|
| Color | (Rotor) White |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Durability (steps) | More than 5000 |
| Electrical Rating (V-A) | 24 DC-25, 3.5 DC-10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Operating Humidity Range (%RH) | 35 to 95 (at 5 to 35°C) |
| Operating Torque (N m) | 1.96x10² |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type of Output Code | Real code |
| Vibration Resistance (Malfunction) | 10-55Hz double amplitude 1.5mm |
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
