Process quantity such as temperature, pressure and flow rate can be controlled.
From simple loop control to full-fledged process control.
The CS1 loop controller, which compactly integrates DCS functions, can be programmed with an instrument block method suitable for process control.
Graphical programming is possible by pasting the instrument block on the Windows screen and connecting with the mouse.
Various control types can be executed from normal PID control to cascade control and feedforward control.

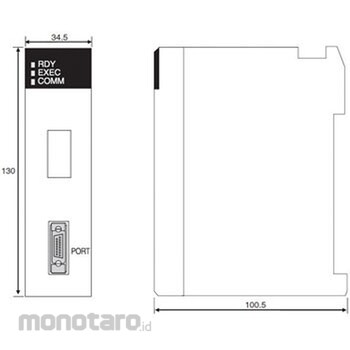

OMRON Programmable Controller CJ1/CJ1M Loop Control Board
#Grup produk P106916366
Sebelum PPN:
Rp41.999.900 - Rp129.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | Front connection/RS-232C port x 1 (for connecting external controller ES100X) |
|---|---|
| Suitable For | Applicable PLC (CPU unit) : CS1G/H-CPU H, CS1D-CPU S (loop control board Ver.1.5 or later only) |
| Current Consumption (A) | 0.22 (5V system) |
| Data Retention | Backup with super capacitor, data stored in flash memory, recovery from flash memory to RAM |
| Time (ms) | Impact time on the cycle time of the CPU unit/Max. 0.8 (depends on the data contents of the instrument block) |
| Display Part | 3 LEDs: During operation, ready, communication port transmission/reception |
| Applicable Standard | cULus (Class I Div 2 hazardous area certified product), NK, EC directive |
| Backup Time (hour) | 24 at 25°C (If used at higher temperatures, the service life will be shortened.) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
