OMRON Process Input/Output Unit CJ1W-PH41U/AD04U
#Grup produk P106916001
Spesifikasi
| Resolution | 1/12000 (at voltage / current input) |
|---|---|
| Current Consumption (A) | 0.32(5V) |
| Accuracy | (At ambient temperature 23°C) Platinum resistance thermometer input: (±0.3 of PV, or ±0.8°C, whichever is larger) ±1digit or less Thermocouple input:(±0.3% of PV, or ±1.5 Larger temperature) ±1digit or less V/current input: (±0.3% of FS) ±1digit or less |
| Type of Input | Platinum resistance temperature detector: Pt100 (JIS, IEC), Pt1000, JPt100 Thermocouple: K, J, T, L, R, S, B Current: 4 to 20mA, 0 to 20mA Voltage: 1 to 5V, 0 to 5V , 0-10V input type can be set individually for each point |
| Applicable Standard | cULus (Class I Div 2 hazardous area certified product), Lloyd, EC Directive |
| Unit Type | CJ series high performance I / O unit |
| Display Part | Front / LED 3 (Abnormality detected by the unit during normal operation, Abnormality detected by the CPU unit) |
| Function | Input error detection, Measured value alarm |
| Input Impedance (ohm) | Temperature input / 10k or more, voltage input / 1M or more, current input / 250 (fixed) |
| Number of Input Points | 4 points |

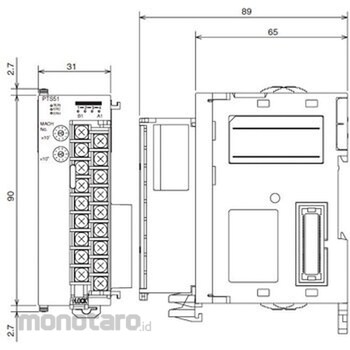

| Outer dimensions, Width W x Height H x Depth D (mm) | 31x90x65 |
| Power Consumption (W) | 1.6(5V) |
| Type | Isolated full multi input unit |
| Type of Insulation | Between input and controller signal: power supply/transformer, signal/photocoupler Between each input: power supply/transformer, signal/photocoupler |
| Withstand Voltage | Between each channel: AC500V 50 / 60Hz for 1 minute, leakage current 1mA or less |
