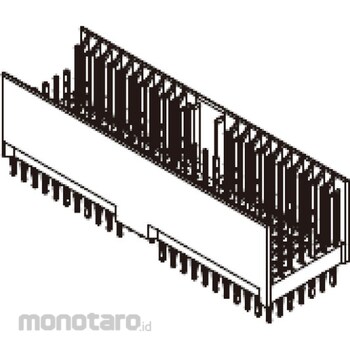

OMRON HM Connector (2mm Pitch Hard Metric Connector) XC8
#Grup produk P106901197
Spesifikasi
| Operating Temperature Range (°C) | -55 to 125 (no freezing at low temperatures) |
|---|---|
| Insertion/Removal Durability (times) | 250 |
| Contact Material | (contact part) Phosphor bronze/nickel base socket Gold plating, Plug Gold palladium plating, (Terminal part) Phosphor bronze/nickel plating |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insulation Resistance (MΩ) | 10⁴ or more (at 100 VDC) |
| Rated Current (A) | 1 |
| Rated Voltage (V) | AC 500 |
| Withstand Voltage (V/minute) | AC 750 (leakage current 1mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
