High reliability and low price are realized at the same time by adopting MIL standard compliant product new productivity design as the core of printed circuit board connector.
Compliant with MIL standard (MIL-C-83503).

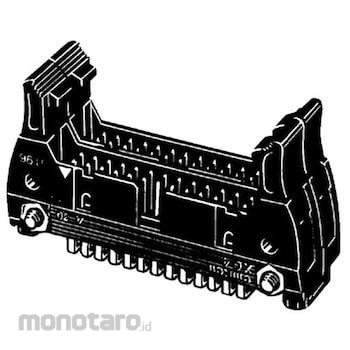

OMRON Flat Cable Connector (General-Purpose Type) XG4 2-Layer Stacked Plug
#Grup produk P106898936
Spesifikasi
| Insertion/Removal Durability (times) | 50 |
|---|---|
| Material (Contact Connection Part) | Brass |
| Material (Contact Terminal Pressure Connection Part) | Brass |
| Processing (Contact Connection Part) | Nickel base + gold plating (0.15μm) |
| Cell Spacing (mm) | (Polarity slot) 22.86 |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insulation Resistance (MΩ) | 10³ or more (at 500 VDC) |
| Material (Housing) | Glass-filled PBT resin (UL94V-0)/Black |
| Operating Ambient Temperature (°C) | -55 to 105 (no freezing in the bass) |
| Processing (Contact Terminal Pressure Connection Part) | Nickel base + tin plating (2.0μm) |
| Shape | Double stack type plug |
| Single Removal Force (N) | 0.39 or more (with 0.64mm test gauge) |
| Standard | RoHS directive, ML standard (MIL-C-83503), UL standard (file No.E103202) |
| Suitable Wire (mm) | For pressure welding: 1.27 pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
| Terminal Shape | DIP L-shaped terminal |
