Ultra-compact basic switch with abundant terminal variations High accuracy and high durability with a split two-plate spring structure.
Uses an integrally molded terminal structure that prevents the flux from creeping up.

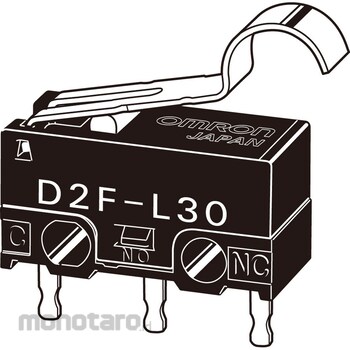

OMRON Extra Small Basic Switch (Hinge R Lever Type) D2F
#Grup produk P106898334
Spesifikasi
| Protection Class | IEC IP40 |
|---|---|
| Operating Position OP (mm) | 9.5±1 |
| Type Of Actuator | Hinge are lever type (R2.5) |
| Ambient Relative Humidity (RH) | 85 or less (at +5~+ 35 ° C) |
| Vibration Resistance (Malfunction) | Frequency 10 ~ 55Hz, double amplitude 1.5mm (operating limit position) |
| Allowable Operating Speed (mm/s) | 5 to 500 |
| Contact Specifications | Crossbar |
| Contact Type | 1c (double throw type) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 1,000,000 or more (60 / min) |
| Operating Ambient Temperature (°C) | -40 to +85 60% RH or less (with no icing or condensation) |
| Withstand Voltage | Between same pole terminals: AC600V 50 / 60Hz 1min Between charging metal part and ground, between each terminal and non-charging metal part: Between each terminal and non-charging metal part AC1500V 50 / 60Hz 1min |
