Spesifikasi
| Allowable Operating Speed (times/minute) | Mechanical: 30, Electrical: 30 |
|---|---|
| Ambient Relative Humidity (RH) | 35 to 85 |
| Electric Shock Protection Class | Class II |
| Vibration Resistance (Malfunction) | 10 to 55 Hz, 1.5 mm double amplitude (within 1 ms) |
| Electrical Durability | 300,000 times or more (once set or reset) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | LED |
| Mechanical Durability (times) | 300,000 or more (once set or reset) |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 250 or more (malfunction less than 1ms) |
| Storage Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Withstand Voltage | Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk

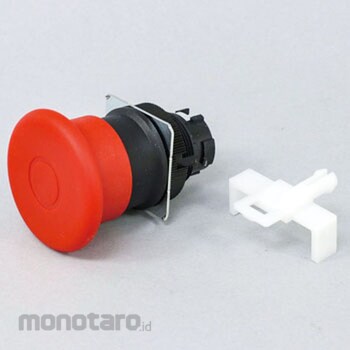

Description
With a direct opening mechanism that shuts off the circuit when Φ22 and Φ25 common contacts are welded.
With safety lock mechanism to prevent misoperation.
The unit can be easily removed with a lever.
Wiring efficiency is improved by mounting 3 rows of switch sections (non-illuminated type can be multi-contacted by mounting 3 switch units).
Switch part with finger protection is standard equipment.
Crimp terminals can be mounted either open (fork) or closed (round).
IP65 oil resistant type (non-illuminated type) / IP65 (illuminated type).
A lock plate is provided as a standard feature to prevent the operation unit and switch unit from being easily separated.
With safety lock mechanism to prevent misoperation.
The unit can be easily removed with a lever.
Wiring efficiency is improved by mounting 3 rows of switch sections (non-illuminated type can be multi-contacted by mounting 3 switch units).
Switch part with finger protection is standard equipment.
Crimp terminals can be mounted either open (fork) or closed (round).
IP65 oil resistant type (non-illuminated type) / IP65 (illuminated type).
A lock plate is provided as a standard feature to prevent the operation unit and switch unit from being easily separated.
