Lock strength 3000N
A variety of monitoring patterns can be realized with two safety circuits and two monitoring contacts.
Standard use of gold-clad contacts supports both general and micro loads.
A trapped key type avoids the danger of being left behind in the fence.
With the back release button type, you can unlock and escape from the inside even if you are trapped inside the fence.
Protection structure IP67.

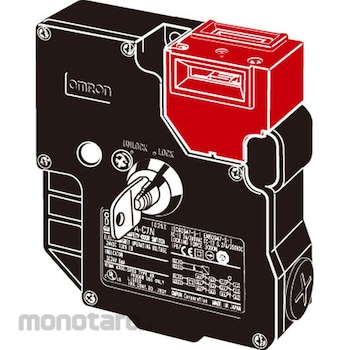

OMRON Electromagnetic Lock/Safety Door Switch D4JL
#Grup produk P106897414
Sebelum PPN:
Rp3.699.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Rated Frequency (Hz) | 50/60 |
|---|---|
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
| Ambient Relative Humidity (RH) | 95 or less |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Allowable Operating Speed (m/s) | 0.05 to 0.5 |
| Contact Resistance (miliΩ) | 25 or less (per contact) |
| Electric Shock Protection Class | Class II (double insulation) |
| Electrical Durability | 500,000 operations or more (250 VAC, 3 A, resistive load) |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Material (Head) | Plastic |
| Minimum Applicable Load (V-mA) | DC 5-1 resistance load (N level reference value) |
| Operating Ambient Temperature (°C) | -10~+55 (no freezing) |
| Operating Force (N) | (Direct opening) Minimum 60 (EN60947-5-1) |
| Protection Class | IP67(EN60947-5-1) |
| Rated Impulse with Stand Voltage (kV) | Between terminals of the same polarity: 2.5 Between terminals of different polarity: 4 Between other terminals and non-current-carrying metal parts: 6 |
| Rated Insulation Voltage (V) | (Ui)300(EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 80 or more |
