Power switch for doors with a contact gap of 3 mm or more Secures a contact gap of 3 mm or more required for power switches (standard type).
Considering safety by adopting double return spring structure and forced separation structure.
A pull-on-lock mechanism with power for maintenance is also available.

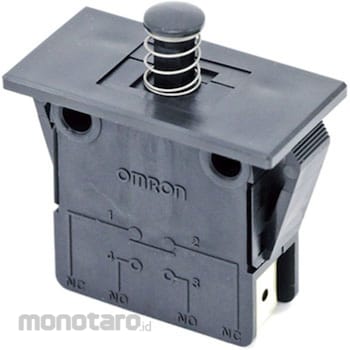

OMRON Door Power Switch (Panel Mount) D2D
#Grup produk P106896752
Spesifikasi
| PTI (Proof Tracking Index) | 175 |
|---|---|
| Minimum Applicable Load (V-mA) | DC5-160 |
| Ambient Relative Humidity (RH) | 85 or less (at +5~+ 35 °C) |
| Rating | AC250V 16A |
| Allowable Operating Speed (mm-m/s) | 10 to 1 |
| Contact Resistance (miliΩ) | 50 or less (initial value) |
| Contact Specifications | Rivet |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 100,000 times or more (30 times / min) |
| Inrush Current (A) | Normally closed circuit: Maximum 30, normally open circuit: Maximum 30 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 10 million or more (60 times/min) |
| Mounting | Panel mount |
| Operating Ambient Temperature (°C) | -25 to +85 60% RH or less (with no icing or condensation) |
| Protection Class | IEC IP40 |
| Rated Voltage (V) | AC250 |
| Vibration Resistance (Malfunction) | Frequency 10-55Hz, double amplitude 1.5mm |
