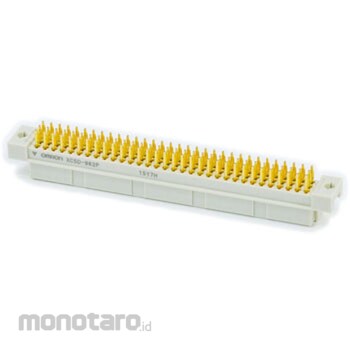

OMRON Din Connector (Fine Fit) XC5
#Grup produk P106896114
Spesifikasi
| Rated Current (A) | 2 |
|---|---|
| Rated Voltage (V) | AC300 |
| Total Insertion Force | Number of poles x 0.59 N or less |
| Contact Material | (Contact part) Copper alloy / nickel base Gold plating (0.4 μm), (Terminal part) Copper alloy / nickel base Gold plating (0.15 μm) |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insertion / Removal Durability (Times) | 200 |
| Insulation Resistance (MΩ) | 106 or more (at 100 VDC) |
| Material (Housing) | PBT resin with glass (UL94V-0)/gray |
| Operating Temperature Range (°С) | -55~+125 (no freezing at low temperatures) |
| Withstand Voltage (V/minute) | AC 1000 (leakage current 1mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
