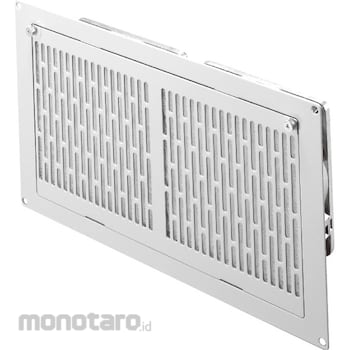

OMRON Box Fan R87B
#Grup produk P106891076
Sebelum PPN:
Rp1.899.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Storage Temperature (°C) | -40 to 85 (no freezing) |
|---|---|
| Frequency (Hz) | 50/60 |
| Insulation class | IEC B type (130°C) UL A type (105°C) CSA A type (105°C) |
| Isolation Voltage (V) | AC 2000 (1min.) Power supply connection block and non-charged metal part |
| Material (Frame) | Aluminium Die Casting |
| Allowable Voltage Fluctuation (%) | 85 to 110 of rated voltage |
| Ambient Relative Humidity (RH) | 25 to 85 |
| Applicable Standard | PSE, EN/IEC60335 (CE self-declaration) |
| Bearing Material | Ball bearing |
| Fan Blade Material | Glass-filled polycarbonate |
| Insulation Resistance (MΩ) | 100 or more (500 VDC mega) |
| Motor | Single-phase kumatori coil induction motor (2 poles, open type) |
| Operating Ambient Temperature (°C) | -30 to 70 (no freezing) |
| Power Input (V) | AC 200 |
| Protection Method | Impedance protection |
| Speed | High speed |
| fan | R87F (resin blade) axial fan |
