Extends the life of the motor and enables emergency response by one-sided operation when cleaning the water tank or when the pump breaks down.
An electronic relay that operates in the same way as the ratchet relay type G4Q.
Compared to the G4Q type, the power application time is shorter and there are no restrictions on the mounting direction.

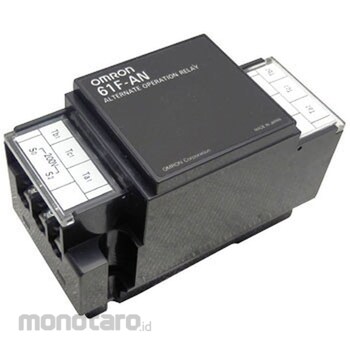

OMRON Alternate Operation Relay 61F-AN
#Grup produk P106889831
Spesifikasi
| Shock Resistance Destruction (m/s²) | 98 |
|---|---|
| Ambient Relative Humidity (RH) | 45-85 |
| Type of Terminal | Screw tightening type |
| Response Time (ms) | 25 or less of operation, 30 or less when returning |
| Vibration Resistance (Destruction) | 10-55Hz Double amplitude 1mm |
| Electrical Life (Rated Load) (times) | 100K or more |
| Insulation Resistance (MΩ) | 10 or more (at 500 VDC) (between all contact circuits and power supply circuit) |
| Mechanical Life (times) | 1million or more (opening and closing frequency 1800 times/hour) |
| Operating Ambient Temperature (°C) | -10 to 55 |
| Rated Voltage (V) | AC 200 |
| Withstand Voltage | AC2000V 50/60Hz 1min (between contact circuit and power supply circuit) |
