Equipped with asynchronous mode with wider input frequency range.
AC stabilized power supply unit that secures a stable power supply at sites where power supply environment is poor.

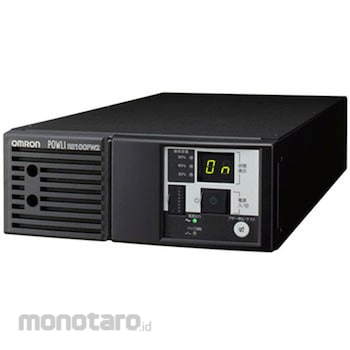

OMRON AC Stabilized Power Supply
#Grup produk P106889336
Sebelum PPN:
Rp30.999.900 - Rp39.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Input Frequency (Hz) | Synchronous mode: 50/60 ± 5, Asynchronous mode: 40-70 |
|---|---|
| RoHS Directive | Incompatible |
| Output Frequency (Hz) | Synchronous mode: Synchronized with input frequency, Asynchronous mode: 50/60 ± 0.5 |
| Waveform Distorsion | 3% or less (resistive load, at rated output), 6% or less (rectified load, at rated output) |
| Output voltage (V) | 100 mode: 100 ± 2%, + 110 mode: 110 ± 2%, 115 mode: 115 ± 2%, + 120 mode: 120 ± 2% |
| Storage Temperature (°C) | -20 to 55 |
| Humidity Range (% RH) | Operating environment: 10 to 90 (non-condensing), storage environment: 10 to 90 (battery fully charged, non-condensing) |
| Input Voltage Range (V) | AC 75 ± 2 to 143 ± 2 (when 90% or less load is connected), AC 85 ± 2 to 143 ± 2 (when 90% or more load is connected) |
| Input plug | 3P (NEMA5-15P) |
| Number of Phases | Input: Single-phase 2-wire (with ground) |
| Operating Ambient Temperature (°C) | -10 to 55 |
| Operation Pattern | Inverter power supply system |
| Outer Dimensions (WxHxD) (mm) | 220x85x500 (excluding protrusions) |
| Output Waveform | Sine wave |
| Output of Outlet | 3 (NEMA5-15R) |
| Starting Voltage Range (V) | AC 85±2-146±2 |
| Switching Time (s) | Commercial direct delivery: no interruption |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
