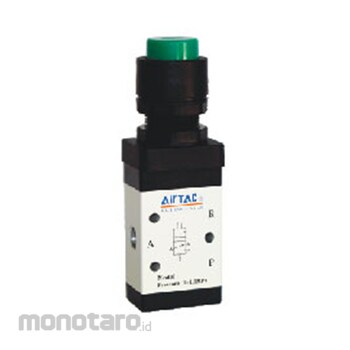

Airtac Control Valve 3/2 Way Mini type
#Grup produk P106862205
Spesifikasi
| Fluid | Air (to be filtered by 40 µm filter element) |
|---|---|
| Operating | External Control Direct Acting Type |
| Port Size (mm) | 05:M5 |
| Orifice Size (mm²) | 05: 2.5 (Cv=0.14) |
| Valve Type | 3/2 Way |
| Lubrication | Not required |
| Body Material | Aluminium Alloy |
| Pressure Range (MPa) | 0-1.0 (0-145psi) |
| Proof Pressure (MPa) | 1.5 (215psi) |
| Temperature (°C) | -20 to 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
Gambar hanya ilustrasi, Size dan Model produk tertera dalam namaFeature
1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.2. The external force required by direction-change of series of M3B, M3R and M3L is provided by external mechanism, which can be used for position test or stroke switch limit switch.
3. M3C, M3D, M3Y,M3PF,M3PM, M3PP,M3PL and M3HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
4. It is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
5. No need to add oilfor lubrication.
6. Multi-mounting makes it convenient to install and apply;
7. The control joints of series of M3C, M3D, M3Y, M3R, and M3L are made of metal which has long service life and more reliable and steady performance.
