Design:
with fully removable split
2x ISO 4762 clamping screws per hub
Temperature range: -30° C to +100° C (-22° F to +212° F)
Tolerance: Overall clearance between hub and shaft 0.01-0.05 mm.
Service life: Maintenance free with infinite life when operated within the technical specifications.
Material:
Bellows made from highly flexible, high grade stainless steel
Hubs made from aluminum
Speeds:
up to 10,000 rpm
in excess of 10,000 rpm with finely balanced version (up to G = 2.5)
Non standard applications: Custom designs with various tolerances, keyways, materials, dimensions, etc. available upon request.
Brief overloads: Acceptable up to 1.5x the rated torque.
Properties of Miniature Coupling model MKH:
for lateral mounting
easy mounting and dismounting
lightweight and low inertia
suited for pre-aligned shafts

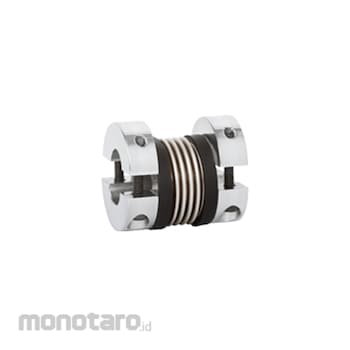

R+W Miniature Bellows Coupling MKH Type
#Grup produk P106862144
Sebelum PPN:
Rp4.199.900 - Rp6.699.900
