Design: Two coupling hubs are concentrically machined with curved jaws.
Tolerance: Overall clearance between shaft and hub 0.01 to 0.05 mm.
Material:
clamping hub: up to series 450 high strength aluminum, from series 800 and up steel
elastomer insert: precision molded, wear resistant, and thermally stable polymer
Speeds: See table below *Please contact R+W ISO 2.5 balance grade available
Properties of Elastomer Coupling model EK2:
easy assembly
concentrically machined hubs
vibration damping
backlash free
electrically isolating
press fit design

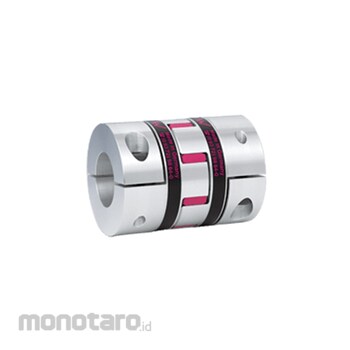

R+W Elastomer Insert
#Grup produk P106862001
Spesifikasi
| Fit Length (C) (mm) | 30 |
|---|---|
| Inside Diameter Possible From Ø to Ø H7 (D1/2) (mm) | 12-32 |
| Inside Diameter of Elastomer (DE) (mm) | 26.2 |
| Outside Diameter (B) (mm) | 56 |
| Outside Diameter with Screw Head (BS) (mm) | 57 |
| Distance (G) (mm) | 10 |
| Distance Between Centerlines (F) (mm) | 21 |
| Fastening Screw (ISO 4762) | M6 |
| Hub Length (H) (mm) | 46 |
| Maximum Torque (N m) | 150 |
| Moment of Inertia Per Hub (J1/J2) (10¯³kgm²) | 0.05 |
| Overall Length A (mm) | 78 |
| Rated Torque (N m) | 75 |
| Speed Balanced (10³minute-1) | 31 |
| Speed Standard (rpm) | 11000 |
| Tightening Torque of The Fastening Screw (N m) | 15 |
