Design:
two coupling hubs are concentrically machined with curved jaws.
bore tolerance H7 + keyway + set screw per DIN 916 or optional pilot bore (DV).
Temperature range: The temperature range depends on the Elastomer insert.
Tolerance: Overall clearance between shaft and hub 0.01 to 0.05 mm.
Material:
coupling hub: up to series 450 high strength aluminium, series 800 and up steel
elastomer insert: precision molded, wear resistant, and thermally stable polymer
Speeds: See table below *Please contact R+W
ISO 2.5 balance grade available
Properties of Elastomer Coupling model EK1:
economical design
concentrically machined
vibration damping
electrically isolating
press fit design
low backlash, due to keyway connection

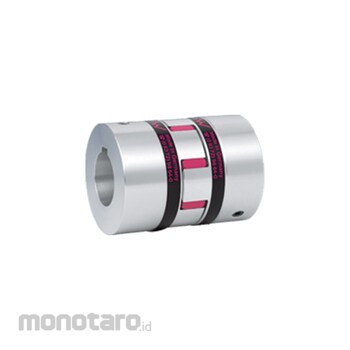

R+W Elastomer Coupling EK1 Type
