Design:

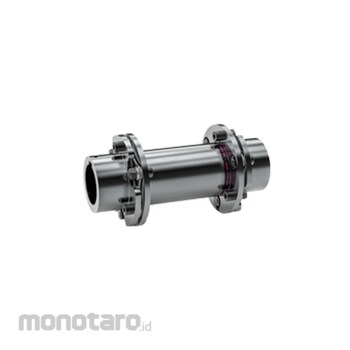

two precision machined coupling hubs and precision spacer tube mounted to the disc packs by means of high strength screws and bushings for alignment and frictional clamping of the assembly.
axial retention with DIN 916 set screws.
Material:
disc pack: highly elastic spring steel
hubs: high strength steel
Features Model LP2:
high torsional stiffness
double flex design
customer specified length available
R+W Disc Pack Coupling
#Grup produk P106861826
Spesifikasi
| Outside Diameter (ØAD) (mm) | 238 |
|---|---|
| Outside Diameter of Hub (ØB) (mm) | 140 |
| Fit Length (C) (mm) | 100 |
| Angular ± (Max.) (degree) | 1.4 |
| Axial ± (Max.) (mm) | 2.5 |
| Distance (G) (mm) | 172 |
| Fastening Screw (ISO 4017) Nut (DIN 4032) | M20 |
| Inside Diameter Possible From Ø to Ø H7 (D1/2) (mm) | 50-102 |
| Inside Diameter Range H7 (XL-Hub) (D1/2) (mm) | >102-125 |
| Lateral ± (Max.) (mm) | 1.6 |
| Material | Steel |
| Maximum Balanced Speed (rpm) | 4700 |
| Maximum Speed (rpm) | 2400 |
| Maximum Torque (N m) | 16000 |
| Moment of Inertia Per Hub (J1/J2) (10¯³kgm²) | 267 |
| Overall Length (G1) (mm) | 216 |
| Overall Length A | 372 |
| Rated Torque (N m) | 8000 |
| Tightening Torque of The Fastening Screw (N m) | 755 |
| Torsional Stiffness (10³ N m/rad) | 800 |
