Design: With tapered conical sleeves and strong, captive ISO 4017 draw-off screws.
Temperature range: -30° C to +100° C (-22° F to +212° F)
Backlash: Absolutely backlash-free due to frictional clamp connection.
Service life: These couplings are maintenance-free if the technical ratings are not exceeded.
Tolerance: On the hub/shaft connection 0.01 to 0.05 mm
Material:
Bellows made of highly flexible high-grade stainless steel.
The hub material is steel.
Brief overload: Acceptable up to 1.5 times the value specified.
Speeds: Up to 10,000 rpm, in excess of 10,000 available with a finely balanced version.
Non-standard application:
Custom designs with varied tolerances
Keyways, non-standard material, bellows and ATEX designs are available upon request
Properties of Bellos Coupling model BK3:
high clamping forces
high degree of operating dependability
new draw off device suited for space restricted installations

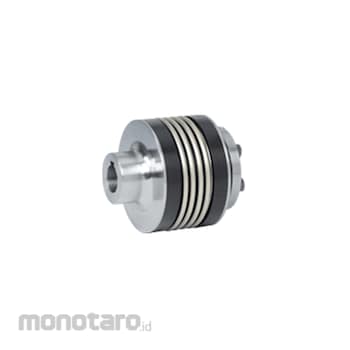

R+W Bellows Coupling BK4 Type
#Grup produk P106861640
Sebelum PPN:
Rp8.199.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Angular ± (Max.) (degree) | 1|1.5 |
|---|
