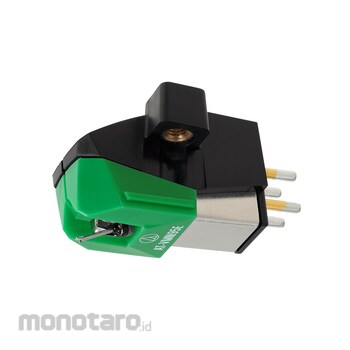

AT-VM95E
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Audio Technica Dual Moving Magnet Cartridge
#Grup produk P106856745
Spesifikasi
| Frequency Response (Hz) | 20 to 22000 |
|---|---|
| Channel Separation (dB) | 20 at 1 kHz |
| Vertical Tracking Angle (°) | 23 |
| Vertical Tracking Force | 1.8-2.2g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance (ohm) | 47000 |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers |
| Cantilever | Aluminium Pipe |
| Coil Impedance (ohm) | 3.3k (1kHz) |
| Coil Inductance (mH) | 550 (1 kHz) |
| DC Resistance (ohm) | 485 |
| Dimensions (mm) | 17.2x18.9x28.3 (0.68x0.74x1.20inch) |
| Dynamic Compliance (cm/dyne) | 17x10-6 (100Hz) |
| Mounting | Half-inch |
| Mounting Feature | Half-inch mount |
| Output Channel Balance (dB) | 2.0 (1kHz) |
| Output Voltage (mV) | 4.0 (1 kHz, 5 cm/sec.) |
| Recommended Load Capacitance (pF) | 100 to 200 |
| Static Compliance (cm/dyne) | 17x10-6 |
| Stylus Shape (ml) | 0.3x0.7 elliptical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylusAluminum cantilever
Specially wound coils increase output voltage
Durable low-resonance polymer housing
Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
Compatible with any AT-VMN95 replacement stylus
