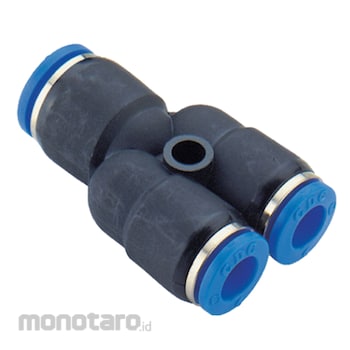

CDC Pneumatics One-Touch Fitting Reducer Y PW Type
#Grup produk P106844528
Spesifikasi
| Diameter ∅D1 (mm) | 12 |
|---|---|
| Diameter ∅D2 (mm) | 10 |
| Diameter ∅P1 (mm) | 21.0 |
| Diameter ∅P2 (mm) | 17.5 |
| Length (mm) | 50.7 |
| Applicable Fluid Type | AIR (No other type of gas or liquid) |
| Diameter ∅C (mm) | 4.5 |
| Dimension B1 (mm) | 22.8 |
| Dimension B2 (mm) | 19.9 |
| Dimensions j (mm) | 17.5 |
| Negative Pressure (inHg) | -29.5 |
| Orifice (mm) | 7.0 |
| Working Pressure Range (PSI) | 0-150 |
| Working Temperature Range (°F) | 32-140 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Do not use in water applicationFeature
ㆍOne-Touch push-to-connect conflguration allows an instant tubing connection.ㆍSmoth-Edge release sleeve design facilitates a quick tubing disconnection.
ㆍAesthetically pleasing nickel-plated metallic optional feature ensures anti-contamination properties for an extended product life.
ㆍPre-applied sealant on all external threads eliminates the additional sealing requirement.
ㆍInternal and/or externalflat-to-flat hexagonal con figurations for both metric and inch specifications allow a proper tightening or directional orientation upon installation by using L key or allen wrench for the applicable model types.
