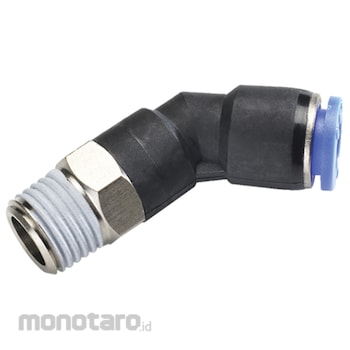

CDC Pneumatics One-Touch Fitting PL Type
#Grup produk P106844281
Spesifikasi
| Inner Diameter ∅D (mm) | 6 |
|---|---|
| Outer Diameter ∅P (mm) | 13 |
| Thread | R 1/8 |
| Length L1 (mm) | 24.5 |
| Length L2 (mm) | 41.3 |
| Dimension E (mm) | 18.4 |
| Applicable Fluid Type | AIR (No other type of gas or liquid) |
| Dimension A (mm) | 8 |
| Dimension B (mm) | 16.4 |
| Dimension H (mm) | 12 |
| Negative Pressure (inHg) | -29.5 |
| Orifice (mm) | 4 |
| Working Pressure Range (PSI) | 0-150 |
| Working Temperature Range (°F) | 32-140 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Do not use in water applicationFeature
ㆍOne-Touch push-to-connect conflguration allows an instant tubing connection.ㆍSmoth-Edge release sleeve design facilitates a quick tubing disconnection.
ㆍAesthetically pleasing nickel-plated metallic optional feature ensures anti-contamination properties for an extended product life.
ㆍPre-applied sealant on all external threads eliminates the additional sealing requirement.
ㆍInternal and/or externalflat-to-flat hexagonal con figurations for both metric and inch specifications allow a proper tightening or directional orientation upon installation by using L key or allen wrench for the applicable model types.
