- Waterproof Phase/Motor Rotation Tester
- Two UL 500mA/700V fuse protection.
- Low battery detection.
- Waterproof resist.

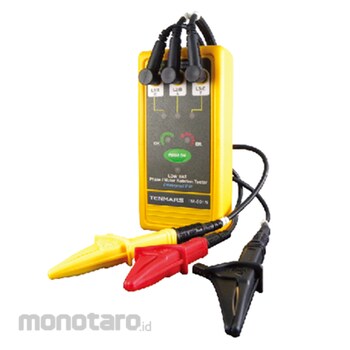

Tenmars 3-Phase/Motor Rotation Tester
#Grup produk P106784749
Sebelum PPN:
Rp3.499.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Overvoltage Category | CAT IV 600V, CAT III 1000V |
|---|---|
| Inter Phase Voltage (V) | 45 AC up to 600 AC |
| Signal Frequency Range (Hz) | 45 to 400 |
| Test Current (mA) | (In per phase) less than 3.5 |
| Motor Power (W) | 6 ~160 |
| Dimension (LxWxH) (mm) | 143x68x35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Check the 3 wires of the power cord, L1, L2 and L3 through the 3 red lamps, which indicate if each wire is connected well.- Check if L1, L2 and L3 are in place, the 3 motor wires, the motor's direction of rotation, and the ER red/green OK indicators.
- When the battery is low, an indicator will turn ON to remind you to replace it.
- Two UL 500mA/700V fuse .
- Waterproof resist IP67.
Use
- Phase sequence testing. Three phase motor installation and maintenance.- Check motors for rotation direction.
- Identifies the phase sequence of three phase electrical systems.
- Indicates normal or reversed phases as well as loss of phase.
