- Measuring method: Impedance (AC four-terminal method).
- A/D conversion: Dual slope method.

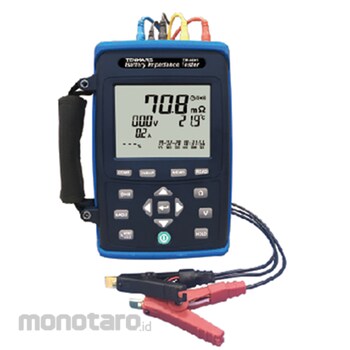

Tenmars Battery Impedance Tester
#Grup produk P106784721
Sebelum PPN:
Rp18.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Display | LCD display and LEDs (comparator output) |
|---|---|
| Open-Circuit Terminal Voltage (V) | 7.0 p-p max |
| Input Over Range | Screen displays “OL” |
| Low Battery Detection | Screen displays |
| Auto Power OFF | The meter will turn off automatically after about 15 minutes of inactivity, allows user to set the inactive time (01-99 minutes) |
| Comparator Setting | High and Low limits of the comparators impedance and voltage |
| Manual and Auto Continuous Data Logging | 9999 sets |
| Number of Comparator Setting | 99 sets |
| Sampling Rate (s) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- The Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery ( NiMH),Nickel-cadmium battery(NiCd),Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery.- AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get the accurate results.
- Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
- It has 99 sets of composite comparator function, which can be set at impedance and voltage values to get the reliable detection of battery deterioration.
- Pin type leads, which can easily contact the battery electrodes supplied as standard to get more accurate 4-terminal measurement.
Use
- TM-6001 is an ideal tester for automotive, UPS maintenance and telecommunication applications.- Quick response time.
- Simultaneously display the results of battery Impedance,voltage measurements.
- Support the comparator function to rate the conditions as pass,warning or fail.
