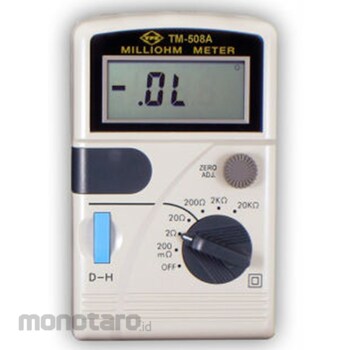

Tenmars Milliohm Meter
#Grup produk P106784703
Spesifikasi
| Display | 3 1/2 digits, LCD display with max. reading of 1999 with decimal point and measurement unit |
|---|---|
| Overload Indication | \"OL\" indication |
| Zero Adjust | External zero adjust knob |
| Low Battery Indication | Replace battery as LCD display |
| Operating Altitude (m) | Max. 2000 above level |
| Accuracy | ±(0.3%+4dgt) |
| Humidity (%) | below 80RH |
| Measuring Range | 200mΩ-20kΩ |
| Open Voltage (V) | Approx.4.8 DC |
| Operating Ambience | In-door use, under environmental pollution grades two |
| Reading Speed (time/s) | 2.5 |
| Resolution | 0.1mΩ-10Ω |
| Temperature (°C) | 23 ±5°C |
| Testing Current | 100mA-100uA |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Very low impedance measurement by Four Wire type one pair coated clip.
Feature
- Very low impedance measurement by Four Wire type one pair coated clip.- There is a fuse (0.5A/250V) to pro the input circuit.
- Applicable measurement of Resistance, motor coil, transformer, Printed Circuit Board.
- Accurate measurement of conductor, light electricity and welding point.
- Wide measurement range, 0.1 mΩ to 20kΩin 6 positions.
- D-H Switch: Lockup readings for LCD display.
Use
- Utility area:measurement of secondary transformer winding;measurement of division switch for sufficient low-ohm value- Manufactures or users of relays and protective device
- Manufacturers of switches buttons,contact material
