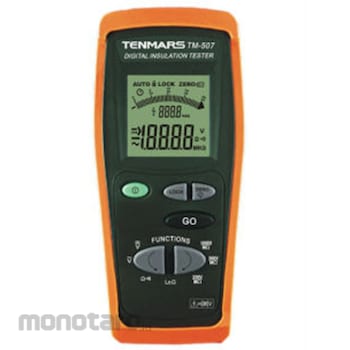

Tenmars Digital Insulation Tester (Pengukur Isolasi)
#Grup produk P106784688
Spesifikasi
| Measuring Range | DC Voltage : 0.1~600.0V; AC Voltage : 0.1~600.0V; Resistance : 0.1 - 199.9Ω |
|---|---|
| Resolution | DC Voltage : 0.1V; AC Voltage : 0.1V; Resistance : 0.1Ω |
| Accuracy | DC Voltage : ±(0.5%rdg+1dgt); AC Voltage : ±(0.8%rdg +4dgt) ; Resistance : ±(2.0% rdg + 3dgt) |
| Overload Protection | DC Voltage : 605V AC max RMS); AC Voltage : 605V AC max RMS ; Resistance : 605V AC max RMS per 1 minute |
| Test Current | >200mA DC up to 5Ω (measuring cables resistance included); >45mA DC over 5Ω (measuring cables resistance included) |
| Short Circuit Current (mA) | <3.0 |
| Dimension (LxWxH) (mm) | 240x100x45 |
| Nominal Testing Current | 1mA @1KΩx V (1mA @ 500KΩ) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This instrument complies with safety Standards EN61557 and EN61010-1 related to electronic measuring instruments.
Feature
- 4 digit LCD display.- Automatic Polarity Indication.
- Low battery indication.
- Measures high insulation resistance with auto range:250V: 4MΩ to 1000MΩ; 500V: 4MΩ to 2000MΩ; 1000V: 4MΩ to 4000MΩ.
- Measures AC and DC voltages: 0V to 600V.
- Function Keys: POWER, GO, ZERO, LOCK, BACKLIT.
- Continuity Test.
- Auto Discharge.
- Auto Power Off.
Use
This product conforms to the prescriptions of the European directive on low voltage 73/23/EEC (LVD) and to EMC directive 89/336/EEC, amended by 93/68/EEC. Conversion Average value Display refreshing rate 2 times per secondUlasan Produk
