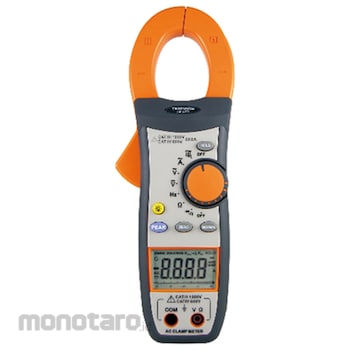

Tenmars AC Clamp Meter
#Grup produk P106784305
Sebelum PPN:
Rp5.499.900 - Rp5.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Display | 3 1/2 LCD with maximum reading 3999 units plus decimal point signs |
|---|---|
| Conversion Mode | Mean value |
| Jaws Opening (mm) | 50 |
| Accuracy | AC Current : ±(2.0%+5) ±(2.5%+5); DC Voltage : ±(0.5%+3dgt) ±(0.8%+3dgt); AC Voltage : ±(0.5%rdg+3 dgt) ±(0.8%rdg+3 dgt); Resistance : ±(1.0rdg+5dgt) ±(1.0rdg+3dgt); Frequency : ±(0.5%rdg+3 dgt) |
| Dimension (LxWxH) (mm) | 266x93x47 |
| Input Impedance | DC Voltage : 10MΩ; AC Voltage : 10MΩ |
| Max.Open Loop Voltage (V) | Resistance : About 3.0 DC; Continuity and Diode test : About 3.0 DC; Frequency : About 3.0 ms |
| Maximum Conductor Size (mm) | 52 |
| Overload Protection | AC Current : 660A rms(60 second); DC Voltage : DC 1000V AC 750Vrms; AC Voltage : DC 1000V AC 750Vrms; Resistance : DC 1000V AC 750Vrms; Continuity and Diode test : DC 1000V AC 750Vrms; Frequency : DC 1000V AC 750Vrms |
| Resolution | AC Current : 0.1-1A; DC Voltage : 0.1-1V; AC Voltage : 0.1-1V; Resistance : 0.1-1Ω; Frequency : 0.1Hz-100Hz |
| Sample Rate (time/s) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This apparatus conforms to safety standard EN 61010
Feature
The apparatus can perform the following measurements:- AC current (IAC).
- AC voltage (VAC).
- DC voltage (VDC).
- Resistance.
- Continuity Test.
- Diode test.
Use
It can be used for CURRENT and VOLTAGE measurements on installations of surge voltage category CAT IV 600 V, CAT III up to 1000 voltage between Phase and Earth (fixed installations) and for current measures up to CAT III 1000V/660A and CATIV 600V/660AUlasan Produk
