The meters are wall-mounted monitors, suitable for monitoring and recording environmental temperature, humidity and carbon dioxide.
It also has 4~20mA/RS-485/dry contact industrial output, and is an indispensable instrument for improving air quality.

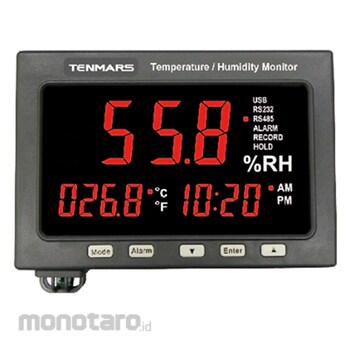

Tenmars Large LED Screen Humidity
#Grup produk P106784129
Spesifikasi
| Measurement Range | Temperature : -20.0°C-70.0°C/-4.0°F-158.0°F; Humidity : 1%~99%RH |
|---|---|
| Resolution | Temperature : 0.1; Humidity : 0.1 |
| Accuracy | Temperature : ±1°C(5°C~60°C) ±2°F(41°F~140°F) Other ranges ±2°C/±4°F; Humidity : ±5%RH (20~80%RH@25°C) Other ranges ±8%RH; Analog Output : ±0.3mA or ±2%(load≦250Ω) |
| Power | AC Input : 24Vac/Vdc±20%(50~60Hz); DC Input : 9~15V |
| Update Rate | Once per second |
| Computer Interface | USB; RS-232; RS-485 |
| Dimension (LxWxH) (mm) | 260x178x47 |
| Dry Contact Specification | Maximum 1A @30Vdc (Normal open) |
| Power Consumption Operation (W) | ≦ 7 |
| Transmission Format (bps) | 15200 8:N:1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Read value display: Double LED display Temperature display unit: °C ; °F
Clock function
Data lock function (HOLD)
Alarm function
Overload display: "OL" or "-OL"
Memory can store a maximum of 60,000 data entries
Use
- Warehouses- Laboratories
- Computer rooms
- Refrigerators
- Hospitals blood / Tissue banks
- Other Critical areas
- Chambers / incubator
- Electronics manufacturing
- Clean rooms
- Defense
