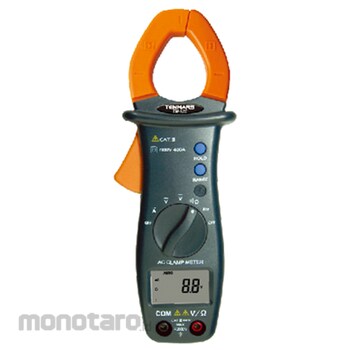

Tenmars Auto Ranging AC Clamp Meter
#Grup produk P106784086
Spesifikasi
| Display | 3 3/4LCD with maximum reading 3999 units plus decimal point signs plus backlight |
|---|---|
| Jaws Opening (mm) | 30 |
| Max Measuring Current (A) | 400 |
| Display Count | 4000 |
| AC Current Range (A) | 0.01~400±(2.0%+10) |
| AC Voltage | 0.1mV~600V±(1.5%+5) |
| DC Voltage | 0.1mV~600V±(1.5%+3) |
| Dimension (LxWxH) (mm) | 195x64x30 |
| Maximum Conductor Size (mm) | 30 |
| Resistance | 0.1Ω~40MΩ±(1.0%+5) |
| Sample Rate (time/s) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Jaws opening up to 30mm.- The maximum conductor size is Ø30mm.
- Safety sockets designed.
- Data Hold.
- Impedance in circuit is below 40Ω. The buzzer will sound.
- Polarity Indication: Automatic polarity, "-" display for negative input.
- Overload Indication: LCD will show a "OL" in the left highest position.
- Low Battery Indication : Replace battery as LCD display "BAT".
Use
EMC:This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001).Ulasan Produk
