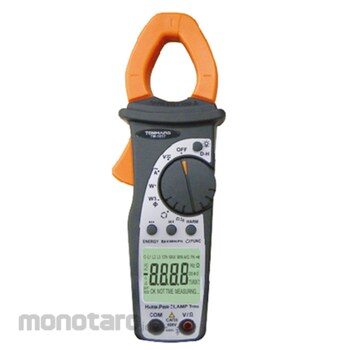

Tenmars True EMS AC Power Clamp Meter
#Grup produk P106784004
Spesifikasi
| Display | 4 dgt LCD with maximum reading 9999 units plus decimal point and sign |
|---|---|
| Sample Rate | 64 samples in 20ms |
| Conversion Mode | TRMS |
| Jaws Opening (mm) | 30 |
| Display Count | 10000 (Backlit LCD display) |
| AC Current Range (A) | 0.1 to 400, ±(1.0% of rdg + 3 dgts) |
| AC Voltage Range (V) | 0.1 to 599.9, ±(1.0% of rdg + 3 dgts) |
| DC Voltage Range (V) | 0.1 to 599.9, ±(1.0% of rdg + 3 dgts) |
| Dimension (LxWxH) (mm) | 205x64x39 |
| Frequency Range (Hz) | 40 to 399.9 ±(0.5% + 1 dgt) |
| Maximum Conductor Size (mm) | 30 |
| Maximum Current (A) | 400 |
| Measures | ACV, DCV, ACA |
| Power Supply | 2x1.5V type 'AAA' batteries |
| Resistance (ohm) | 0.1 to 1999 ±(1.0% + 5 dgts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This apparatus conforms to safety standard EN 61010
Feature
The apparatus can perform the following measurements:- AC voltage (VAC) with TRMS conversion mode.
- DC voltage (VDC).
- AC current (IAC) with TRMS conversion mode.
- Harmonic AC voltage (from DC to 24h components)
- Harmonic AC current (from 1st to 24th components).
- Frequency with input test leads.
- Frequency with clamp jaws.
- Resistance.
- Continuity test.
- Phase rotation with only one test lead.
- Active, reactive, apparent power and power factor measure on single-phase systems.
- Active, reactive, apparent power and power factor measure on balanced three phase systems.
- Active, reactive, apparent energy measurements on single-phase systems.
- Active, reactive, apparent energy measurements on balanced three phase systems.
