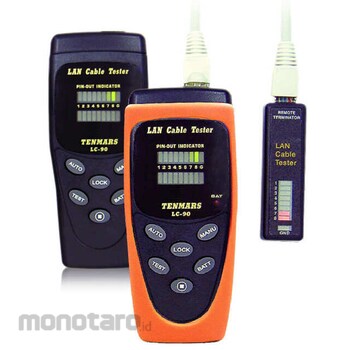

Tenmars LAN Cable Tester
#Grup produk P106783786
Spesifikasi
| Display | LED |
|---|---|
| Connectors | RJ-45 (8P8C) input/output |
| Power Source | 9V 006P battery |
| Cable types | Unshielded twisted pair (UTP100,cat3,4 &5); Foil-screened twisted pair (FTP100 and 120, cat3,4 &5); Shielded twisted pair (STP150 IBM type 1&6) |
| Remote Terminators | Sequence number#1 |
| Function Keys | ON-OFF, TEST, AUTO, LOCK, MANU, BATT |
| Dimension (LxWxH) (mm) | 130x56x38 |
| Recognize Wiring Schemes | EIA /TIA-568A/B,USOC,10 (100) Base/HUB,BNC/10 Base-2, 10 (100) Base-T, token ring |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
Feature
- LED display.- Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
- Verify cable continuity, opens, shorts and miss-wired.
- Auto and manual scan function.
- Ground wire test.
- Locked status wire function.
- Buzzer sound warning for defective wire detected
- Function Keys: ON/OFF, Test, Auto, Lock, Manual.
Use
- Test Pin Configuration for 10/100 Base-T Cable- 10 Base-2 cable, RJ45/RJ11 modular cables
- Verify cable continuity, open, short and miss wired
- Auto and Manual Scan
- Ground Wire Test
