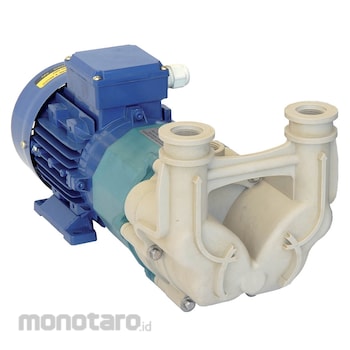

ARGAL Thermoplastic Centrifugal Pump TMA Series
#Grup produk P106779455
Sebelum PPN:
Rp15.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Power (kW) | 0.75 (IEC) 50Hz |
|---|---|
| Motor Size (A) | 80 (IEC) |
| Motor Phases | 3 |
| Standard Voltage (IEC) (V) | 400 ± 5% (50Hz) |
| Motor Protection | IP55 |
| Guide Bushing | SiC |
| Connection | Flanged |
| Data Motor | Standard |
| Execution | Power |
| Standard Motor | IEC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The self priming , magnetic drive pumps of the TMA serie are volumetric, can deliver the flow in both directions reversing the direction of rotation of the motor and are adequate to speedily prime chemical liquids with high specific gravity and/or high vapour tension.
Feature
Start-up with empty pipes Fast priming-phase Maximum Lift = -5 mReversible (inlet-outlet reversal)
Suitable for specific weight up to 2 kg/dm3
Suitable for vapour pressure up to 1 m (H20 @ 45°C)
Minimum NPSHa (available on the plant) = 3 m (abs) Impeller replaceable apart from magnets
IEC or NEMA standard motors can be installed
