Ceiling Subwoofer, ZS-FB2862C-AS offers an attractive exterior designed created by an interior designer to blend it naturally to any architectual space, enhancing the immediate area's sense of harmony. The bass reflex speaker system designed to provide low frequency range and high-quality sound output, ideal for locations with high ceiling or places that requires true-to-life sounds.

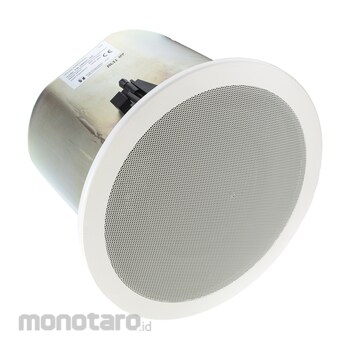

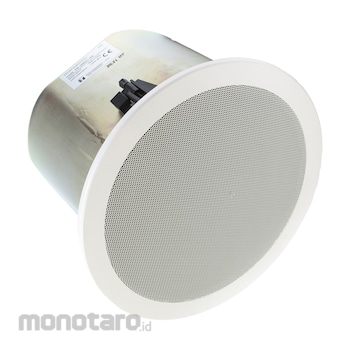

The ZS-1860-AS Ceiling Mount Speaker is ideal for use in a voice alarm system or BGM system. It feature spring clamp mechanism for easy mounting to the ceiling.
TOA Ceiling Speaker Sistem Set
#Grup produk P106756588
Spesifikasi
| Accessories | Grille x 1, Ceiling Reinforcement x 1, Safety Wire x 1, Paper Pattern x 1 |
|---|---|
| Enclosure | Bass Reflex Type |
| Input Terminal | Removable locking connector with screw-down terminals (2 input terminals and 2 bridging terminals) |
| Option | Anchoring Hanging Bracket: HY-AH1, Tile Bar Bridge: HY-TB1 |
| Rated Impedance Resistance (ohm) | ZS-FB2862C-AS = 100 V line: 83 (120 W), 170 (60 W), 330 (30 W), 670 (15 W),3300 (3 W), 8 (120 W); ZS-1860 = 100 V line: 1700 (6 W), 3300 (3 W), 6700 (1.5 W), 13000 (0.8 W), 70 V line: 1700 (3 W), 3300 (1.5 W), 6700 (0.8 W), 13000 (0.4 W) |
| Dimensions (φxD) (mm) | ZS-FB2862C-AS : Φ280x198; ZS-1860 : φ180x5 (exposed section) + 65(D) (φ7.09x0.19+2.56inch) |
| Frequency Response (Hz) | ZS-FB2862C-AS : 60-250 (-10 dB) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall); ZS-1860 : 55 - 20000 (pink noise -20dB) |
| Mounting Hole (mm) | ZS-FB2862C-AS : Φ 250 (Maximum ceiling thickness: 37); ZS-1860 : φ150 ±3(mounting hole), Ceiling thickness 5-25 (0.2-0.98inch) |
| Power Handling Capacity (W) | Continuous: 60 (8Ω) (IEC60268-5); Program: 120 (8Ω) |
| Rated Input Power (W) | ZS-FB2862C-AS : 120 (High Impedance); ZS-1860 : 6 (100 V Line), 3 (70 V Line) |
| Speaker Component | ZS-FB2862C-AS : Low Frequency: 16cm cone-type; ZS-1860 : 12cm (5\") cone-type |
| Usable Cable | ZS-FB2862C-AS : Solid copper wire: Φ0.5 - Φ1.6mm (equivalent to AWG No. 24 - 14); Stranded copper wire: 0.2 - 2.5mm² (equivalent to AWG No. 24-14); ZS-1860 : Solid wire: φ0.5 - φ3.0mm² (AWG20-12) |
