TOA 2-way Ceiling Speaker 6W
#Grup produk P106756560
Spesifikasi
| Sensitivity (dB) | 96 (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
|---|---|
| Accessories | Paper pattern x1 |
| Rated Impedance Resistance (ohm) | 100 V line: 670 (15 W), 1000 (10 W), 2000 (5 W),3300 (3 W); 70 V line: 330 (15 W), 670 (7.5 W), 1000 (5 W), 2000 (2.5 W),3300 (1.5 W) |
| Connection | Push-in connector (bridging terminal-2 branch type) |
| Dimensions for Fixing Hole (mm) | Mounting hole: φ250±3 (φ9.84inch±0.12inch); Ceiling thickness: 5 - 25 (0.2-0.98inch) |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire), Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14), 7-core twisted copper wire: 0.75 - 1.25 mm2 (equivalent to AWG 18 - 16) |
| Dimensions (φxD) (mm) | φ280x92 (φ11.02x3.62inch) |
| Finish | Baffle: Steel plate, white (RAL 9016 equivalent), paint; Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Frequency Response (Hz) | 45-20000 (peak -20 dB) |
| Rated Input Power (W) | 15 (100 V, 70 V line) |
| Speaker Component | 20cm (8\") coaxial cone-type |
| Speaker Mounting Method | Spring clamp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

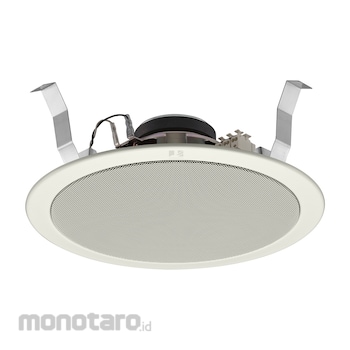

Integrated with a speaker unit and panel, the ZS-2852 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.
