TOA Array Microphone
#Grup produk P106756427
Spesifikasi
| Product Composition | Array microphone x1, Control unit x1 |
|---|---|
| Directivity Angle (°) | Horizontal: 50 (800 Hz - 18 kHz, Array mode), 180 (Cardioid mode), Vertical: 90 |
| Frequency Response (Hz) | 150-18000 |
| Power Source - Array Microphone | 24 V DC (supplied from the Control unit) |
| Microphone | Unidirectional electret condenser microphone |
| Current Consumption (mA) | 410 or less |
| Dimensions - Array Microphone (WxHxD) (mm) | 483.9x22.1x64.9 (19.05x0.87x2.56inch) (excluding Cable) |
| Dimensions - Control Unit (WxHxD) (mm) | 210x45.7x271.5 (8.27x1.8x10.69inch) |
| Indicator | Microphone status indicator (output: green, mute: red) |
| Indicators | Power indicator (blue), Mute indicator (red), Signal indicator (green) |
| Level Control | Output level selection (+4 dB, -10 dB, -50 dB); LOW CUT ON/OFF\" |
| Maximum Cable Distance (m) | 70 (229.66 ft) (use of the AES/EBU cable) |
| Maximum Input Sound Pressure (dB) | 100 SPL |
| Microphone Cable (m) | Shielded twisted pair cable 10 (32.81 ft) with connector equivalent to TA-3 |
| Network | Network I/F: 10BASE-T/100BASE-TX, RJ45 connector; Network protocol: TCP/IP, HTTP |
| Operation - Array Microphone | Mute switch |
| Operation - Control Unit | Power switch |
| Signal to Noise Ratio (dB) | 90 or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

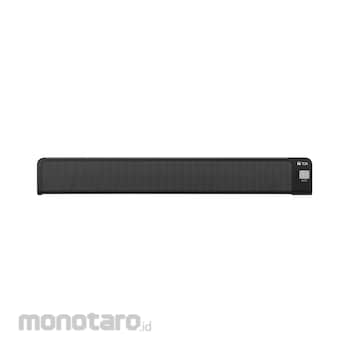

The AM-1B is a high sound quality microphone system that features automatic adjustment capability in a slim configuration. Composed of an array microphone connected to a separate control unit, it is ideal for installations and use on lecterns. The array microphone unit's eight internal microphones detect and track the location of the sound source, picking up audio clearly and without interruption, allowing speakers to conduct presentations more naturally without worrying about the location of the microphone. In addition, setup of operation can be performed Rusing an iPad or PC browser. The control unit can be mounted in an EIA Standard rack with the use of optional rack-mounting brackets. (1-unit size)
Feature
Input : Combined type of TA-3 (dedicated to the array microphone)Output : Combined type of XLR-3-32, Removable terminal block (3 pins)
