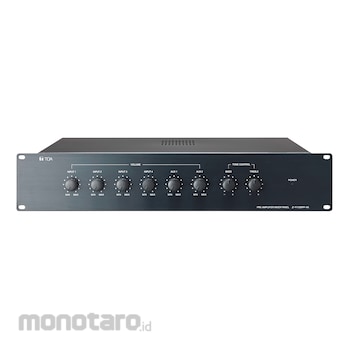

TOA Pre-Amplifier Mixer Panel
#Grup produk P106756180
Spesifikasi
| LED Indicator | Power (Green) |
|---|---|
| Accessories | Removable terminal plug (2 pins) x 7, removable terminal plug (3 pins) x 8, Instruction Manual x 1 |
| Muting | MIC/LINE 1 : Mutes other input signals (Mic/Line 2 - 4, AUX 1 - 2) by 0 - 30 dB attenuation |
| Phantom Power | MIC/LINE 1 (selectable) (+21 V DC) |
| Priority Control | Fireman's microphone > EV > Timer > Paging > Remote microphone > Mic / Line 1 > Mic / Line 2 - 4 & AUX 1 - 2 |
| Tone Control | Bass : -10 dB at 100 Hz, +10 dB at 100 Hz (for INPUT BGM); Treble : -10 dB at 10 kHz, +10 dB at 10 kHz (for INPUT BGM) |
| Current Consumption (mA) | 110 |
| Dimensions (WxHxD) (mm) | 482x88.4x353.3 |
| Distortion | Under 1% (1 kHz, rated output) |
| Finish | Front Panel : Aluminium, Black, Alumite |
| Frequency Response (Hz) | 50-15000, ±3 dB, 1000 |
| Operating Humidity (%RH) | Under 90 (no condensation) |
| Operating Temperature (°C) | 0 to +40 |
| Power Source | Usable Power Supply Unit: FV-200PS; 24 V DC (operating range: 19.5 - 27 V DC), M3 screw terminal |
| SN Ratio (dB) | Over 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Z-FV200PP-AS Pre-Amplifier Mixer Panel is the basic operation section of the Z-FV200 Series Emergency Public Address System
Feature
Audio Input :EV: -20 dB, 600Ω, unbalanced, removable terminal block (2pins)
Timer : -20 dB, 600 Ω,unbalanced,removable terminal block (2 pins)
Paging : -60/-20 dB (selectable), 600 Ω, balanced, removable terminal block (3pins)
RF Link : 0 dB, 600 Ω,unbalanced,removable terminal block (2 pins)
MIC/LINE 1 - 4 : -60/-20 dB (selectable), 600 Ω, balanced, removable terminal block (3pins)
AUX 1 - 2 : -20 dB,10 kΩ, unbalanced, RCA Jack
Audio Output :
Priority output : 0 dB, balanced, removable terminal block (3 pins)
BGM output : 0 dB, balanced, Removable terminal block (3 pins)
Control Input :
Timer : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins), Paging : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins), EV : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
Control Output :
All Call : Contact Switch (Normally Open), removable terminal block (2 pins)
