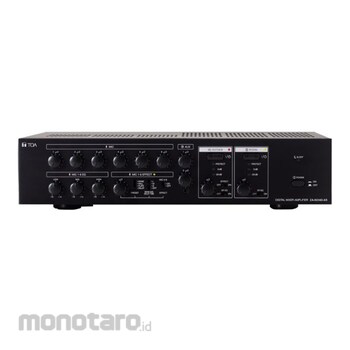

TOA Digital Mixer Amplifier 2 Channel

Input :
MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF)
600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance)
MIC 2 - 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
MIC 5 - 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo)
Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Output :
Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal
Recording output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Effect bus output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)


Controls :
6 Microphone volume controls, 2 AUX volume controls,
1 ROOM output switch, 1 ROOM volume control,
1 OUTSIDE output switch, 1 OUTSIDE volume control,
1 Effect control (0 % to 100 %) of Effect bus,
1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY),
1 Effect Room size/Delay time selection switch (L/M/S/OFF),
1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch,
1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6,
1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6,
1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6,
1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output,
1 Speaker EQ (ZH-5025BM/ZH-652MD) switch for ROOM output,
1 Power switch, 1 Phantom switch for MIC 1,
1 Phantom switch for MIC 2 - 6 (XLR-3-31)


Indicators :
SLEEP indicator
Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE
Protection indicators for ROOM and OUTSIDE amplifiers
Output indicators for ROOM and OUTSIDE
EFFECT indicator for MIC 1 - 6


Selectable EQ Setting :
8 selectable speaker EQ for ROOM output :
1. ZS-F2000BM/WM/BMWP/WMWP
2. ZS-1030B/W
3. ZS-HS1200BT/WT
4. ZS-HS1500BT/WT
5. ZS-102C/ZS-202C
6. ZS-203/ZS-403/ZS-603CB/CW
7. ZS-S60CW
8. ZS-S240CW + ZT-200
