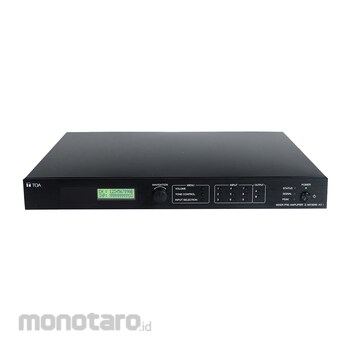

TOA Power Mixer Pre Amplifier
#Grup produk P106756065
Spesifikasi
| Accessories | 6P connector x 2, 3P connector x 2 |
|---|---|
| Tone Control | Bass ± 13 dB at 100 Hz, Middle ± 13 dB at 1 kHz, Treble ± 13 dB at 10 kHz |
| Operating Temperature (°C) | 0 to +40 |
| Connection | Bluetooth 4.2, USB Type B (PC Setting/Update Firmware) |
| Frequency Response (Hz) | 30-20000, ± 3dB |
| Dimensions (WxHxD) (mm) | 420x59x339.7 |
| Control Output | 9 Shortcut switch IN, 2 Shortcut switch OUT, 1 Shortcut switch VOLUME, 1 Shortcut switch TONE CONTROL, 1 Shortcut switch INPUT SELECTION, 1 Navigation switch (Right, Left, Push) |
| Distortion | Under 1 % at 1 kHz, rated power |
| Finish | Front Panel: Aluminium Hair Line, Paint, Black; Case: Steel Plate, Paint, Black |
| Indicator | LCD display with backlight Green, POWER indicator (Green), STATUS indicator (Green), SIGNAL indicator (Green), PEAK indicator (RED) |
| Operating Humidity (%RH) | Under 90 (no condensation) |
| Power Source | 220 - 240 V AC, 14 W |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Z-MX9200-AS 1 is a wireless mixer pre-amplifier equipped with 9 inputs including 4 inputs MIC with phantom, 1 selectable input with option of MIC or AUX, 3 selectable inputs with options of MIC or LINE and 1 selectable input with option of MIC or streaming from smartphone. Parameter settings like Volume, Bass, Middle, Treble, Mute on individual input channel and 2 output channels can be easily adjusted remotely with an android touch screen device connected by Bluetooth.
Feature
Audio Input :Input CH 1 with Phantom option 19 V DC:
- CHIME MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, RJ45 connector
- MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
Input CH 2-4 with Phantom option 19 V DC:
- Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
Selectable Input CH 5 with options:
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
- AUX: Unbalanced, Sensitivity 0 dB (1.8 mV), 10 kΩ, rated 1 kHz, RCA jack connector
Selectable Sensitivity Input CH 6-8, Removable terminal 3 pins with sensitivity options:
- LINE: Balanced, Sensitivity 0 dB, 2.2 kΩ, rated 1 kHz
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz
Selectable Sensitivity Input CH 9, Removable terminal 3 pins with sensitivity options:
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz
- STREAMING: Unbalanced, Sensitivity 0 dB, 10 kΩ, rated 1 kHz
Audio Output :
Audio OUT A & B, Balanced, Removable terminal 3 pins
Optional output level: 0 dB / -10 dB (300 mV) / -20 dB (100 mV), 600 Ω, rated 1 kHz
