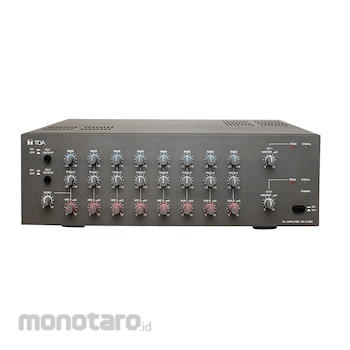

TOA Mixer Amplifier 2 Channel
#Grup produk P106755668
Spesifikasi
| Phantom Power | DC +21 V (MIC 1) |
|---|---|
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Controls | Front: 5 Microphone Gain Controls, 3 Aux Gain Controls, 8 Bass Tone Controls, 8 Treble Tone Controls, 1 Echo Level Control, 2 Master Controls, 1 Power ON/OFF Switch, 2 Output Channel ON/OFF Switch (CH1, CH2) |
| Ambient Temperature (°C) | 0 to +40 |
| Power Supply | AC: 220 V, 50/60 Hz; DC: 24 V |
| Power Consumption | AC: 520 W (rated output); AC: 286 W (operation at EN60065); DC: 20 A (operation at rated output) |
| Dimensions (WxHxD) (mm) | 420x144x361 |
| Distortion | Less than 1% THD at 1 kHz, 1/3 rated output power |
| Finish | Front Panel: Aluminium Gray, Case: Steel plate, Gray |
| Frequency Response (Hz) | 50-20000 (±3 dB) |
| Indicators | 2 LED Output CH, 2 LED Signal 2 LED Peak, 1 LED Power ON |
| Noise Level (S/N) (dB) | More than 80 at All Volume control full CCW, More than 50 at All Volume control full CW |
| Output Regulation | Less than 3 dB no load to full load |
| Speaker Outputs | 100V x 2, 4Ω x2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
ZA-2128M is a Mixer Power Amplifier with high capacity for audio requirements in Mosque or other places of worship.
Feature
Inputs (Sensitivity, Impedance, Connector)MIC 1 : 1.0mV (-60dB) Balanced 600Ω, 2Pole-Phone Jack, Echo
MIC 2 : 1.0mV (-60dB) Balanced 600Ω, 2Pole-Phone Jack
MIC 3 : 1.0mV (-60dB) Balanced 600Ω, 2Pole-Phone Jack
MIC 4 : 1.0mV (-60dB) Balanced 600Ω, 2Pole-Phone Jack
MIC 5 : 1.0mV (-60dB) Balanced 600Ω, 2Pole-Phone Jack
AUX 1 : 300mV (-10dB) Unbalanced 10kΩ, 2-RCA Pin Jack
AUX 2 : 300mV (-10dB) Unbalanced 10kΩ, 2-RCA Pin Jack
AUX 3 : 300mV (-10dB) Unbalanced 10kΩ, 2-RCA Pin Jack
PRE AMP OUT : 1.0V (0dB) Unbalanced 600Ω x 2 , RCA Pin Jack
PWR AMP IN : 1.0V (0dB) Unbalanced 10kΩ x 2, RCA Pin Jack
REC OUT : 1.0V (0dB) Unbalanced 600Ω, 2-RCA Pin Jack
